How to embed Stagetimer on a Website (with code example)

Before embedding Stagetimer, you need to get the output link from your room:

  1. Open your Stagetimer room
  2. Click Output Links above the output preview
  3. Select the output you want to embed (Viewer, Agenda, Moderator, or a custom output)
  4. Copy the link using one of two options:

Short Link (for temporary/event embedding):

  • Click “Short Link & QR” to generate a short URL like https://stagetimer.io/o/ABC1234
  • Easier to share and type
  • Expires after 30 days

Full Output Link (for permanent embedding):

  • Click “Copy Link” to get the full URL with security signature
  • Does not expire (as long as the room exists)
  • Longer URL but works indefinitely

For complete details on creating and customizing outputs, see the Output Links Documentation.

Using an iFrame to embed Stagetimer

You can embed Stagetimer’s viewer, agenda, and moderator pages on any Website.

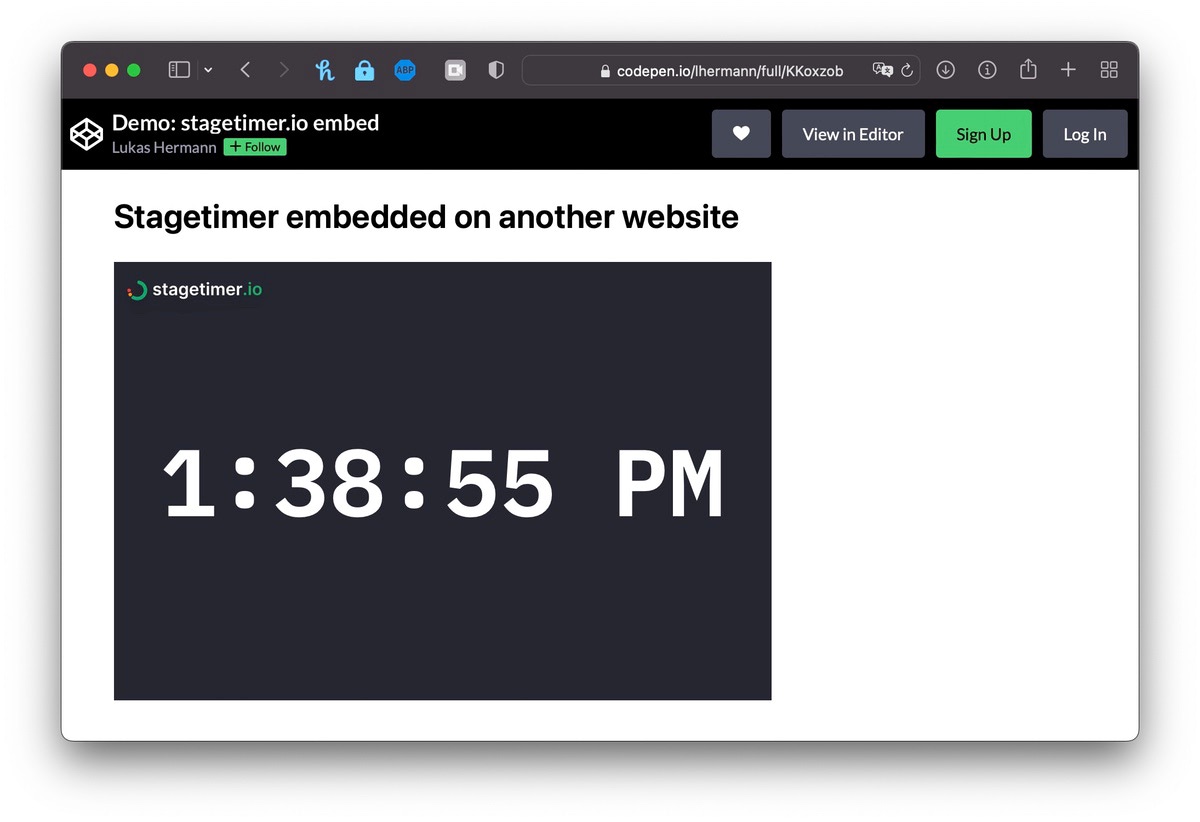

Stagetimer embedded on a wesbite
Stagetimer embedded on a website

To embed Stagetimer in another website, you will need to use HTML code called iFrame.

When you embed an iframe on a website, you are essentially adding a new page to the website that is hosted on another server. This new page will appear as a part of the website but will be hosted on the other server.

Here is an example of code that would allow you to embed Stagetimer:

Using a short link:

<iframe
  src="https://stagetimer.io/o/ABC1234"
  width="600"
  height="400"
  frameborder="0"
  allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; screen-wake-lock"
></iframe>

Using a full output link:

<iframe
  src="https://stagetimer.io/output/abc123def456/?v=2&signature=..."
  width="600"
  height="400"
  frameborder="0"
  allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; screen-wake-lock"
></iframe>

Replace the src URL with your own output link from the Output Links panel. The width and height parameters can be adjusted to change the size of the embed window.

Let’s look at two example dashboards you can build with iFrames:

  1. A multi-screen dashboard with four timers
  2. A custom dashboard with a timer, agenda, and a YouTube live stream

Create a dashboard with multiple timers

One use-case could be combining multiple timers on a single page.

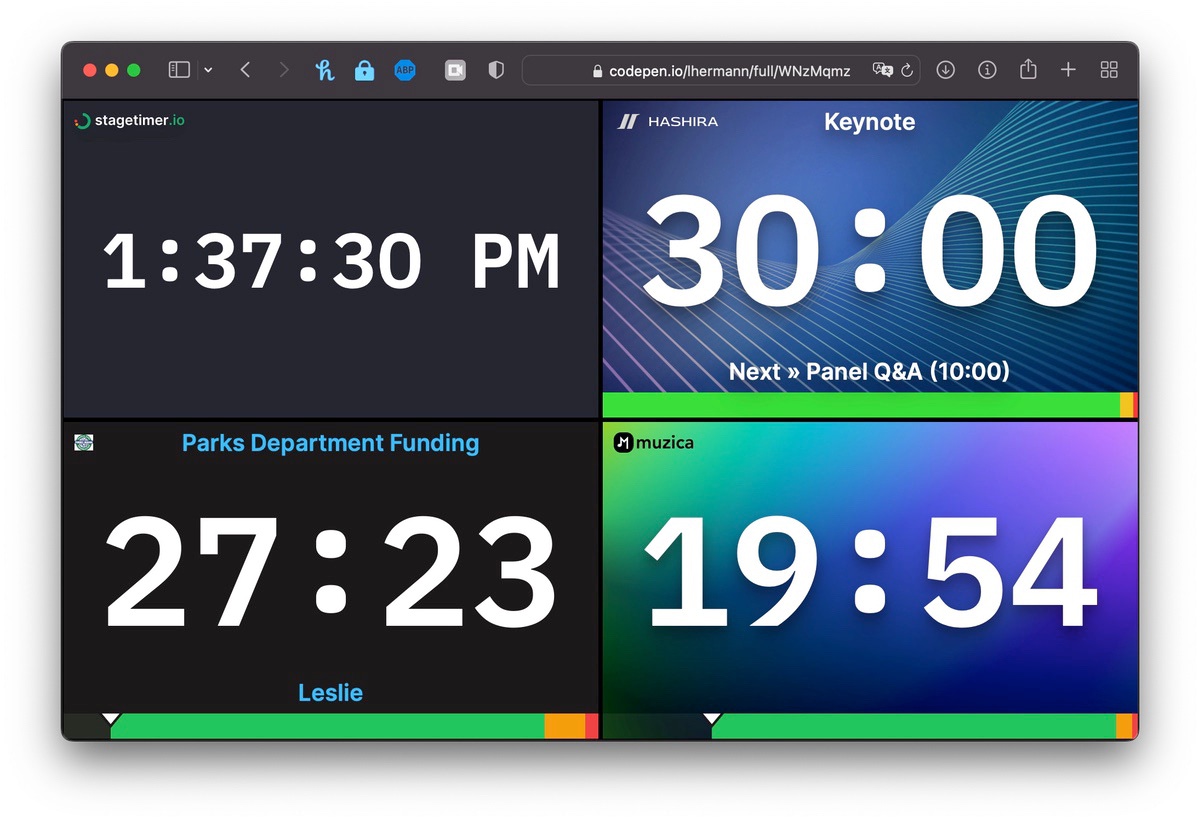

Dashboard with four timers
Dashboard with four timers

A dashboard with multiple timers may have a timer for each team member, or a timer for each task. The dashboard may also have a timer for the total time remaining on an event.

To create a dashboard page:

  1. Use any text editor to create a new file and save it as “dashboard.html” in your project folder.

  2. Add the following code to the “dashboard.html” file:

<!DOCTYPE html>
<html lang="en" >
<head>
  <meta charset="UTF-8">
  <title>Timer Dashboard</title>
  <link rel='stylesheet' href='https://cdnjs.cloudflare.com/ajax/libs/tailwindcss/2.2.19/tailwind.min.css'>
</head>
<body translate="no">
  <main class="grid grid-cols-2 grid-rows-2 h-screen w-screen bg-black">
    <div class="border-2 border-black">
      <!-- 1. Timer -->
      <iframe
        src="https://stagetimer.io/o/YOUR_LINK_1"
        frameborder="0"
        class="w-full h-full"
        allow="screen-wake-lock"
      ></iframe>
    </div>
    <div class="border-2 border-black">
      <!-- 2. Timer -->
      <iframe
        src="https://stagetimer.io/o/YOUR_LINK_2"
        frameborder="0"
        class="w-full h-full"
        allow="screen-wake-lock"
      ></iframe>
    </div>
    <div class="border-2 border-black">
      <!-- 3. Timer -->
      <iframe
        src="https://stagetimer.io/o/YOUR_LINK_3"
        frameborder="0"
        class="w-full h-full"
        allow="screen-wake-lock"
      ></iframe>
    </div>
    <div class="border-2 border-black">
      <!-- 4. Timer -->
      <iframe
        src="https://stagetimer.io/o/YOUR_LINK_4"
        frameborder="0"
        class="w-full h-full"
        allow="screen-wake-lock"
      ></iframe>
    </div>
  </main>
</body>
</html>

  1. Replace each src URL with output links from your Stagetimer rooms (use short links or full output links).

  2. Save the “dashboard.html” file and open it in your web browser.

Here’s a working example: https://codepen.io/lhermann/pen/WNzMqmz

Create a dashboard with YouTube Livestream

In this example, we want to place the timer, the agenda, and a YouTube live stream on the same screen.

Dashboard with timer, agenda, and YouTube livestream
Dashboard with timer, agenda, and YouTube live stream

A dashboard with a timer and live stream preview is useful for keeping track of time and seeing what is happening in the live stream at the same time. This is not only useful as feedback for the video producer but can also serve as digital signage for an event venue, especially with the agenda showing the current progress of the event.

To create a dashboard page:

  1. Use any text editor to create a new file and save it as “dashboard.html” in your project folder.

  2. Add the following code to the “dashboard.html” file:

<!DOCTYPE html>
<html lang="en" >
<head>
  <meta charset="UTF-8">
  <title>Timer Dashboard</title>
  <link rel='stylesheet' href='https://cdnjs.cloudflare.com/ajax/libs/tailwindcss/2.2.19/tailwind.min.css'>
</head>
<body translate="no">
  <main class="grid grid-cols-2 grid-rows-2 h-screen w-screen bg-black">
    <div class="border-2 border-black">
      <!-- Timer Frame -->
      <iframe
        src="https://stagetimer.io/o/YOUR_VIEWER_LINK"
        frameborder="0"
        class="w-full h-full"
        allow="screen-wake-lock"
      ></iframe>
    </div>
    <div class="row-span-2 border-2 border-black">
      <!-- Agenda Frame -->
      <iframe
        src="https://stagetimer.io/o/YOUR_AGENDA_LINK"
        frameborder="0"
        class="w-full h-full"
      ></iframe>
    </div>
    <div class="border-2 border-black">
      <!-- YouTube Frame -->
      <iframe
        width="560"
        height="315"
        class="w-full h-full"
        src="https://www.youtube.com/embed/jfKfPfyJRdk?controls=0&autoplay=1"
        title="YouTube video player"
        frameborder="0"
        allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture"
        allowfullscreen
      ></iframe>
    </div>
  </main>
</body>
</html>

  1. Replace the timer and agenda src URLs with your output links from the Output Links panel.

  2. Change the YouTube link with your own video ID https://www.youtube.com/embed/<YOUR_YOUTUBE_ID>?controls=0&autoplay=1 (tip: autoplay=1 starts the playback as soon as the page is loaded).

  3. Save the “dashboard.html” file and open it in your web browser.

Here’s a working example: https://codepen.io/lhermann/pen/RwMYPdj

Embed websites INTO Stagetimer

This page covers embedding Stagetimer into your website. To do the opposite - show external websites inside your Stagetimer output - use the Iframe element. It displays dashboards, data feeds, or any web page right next to your timers.
